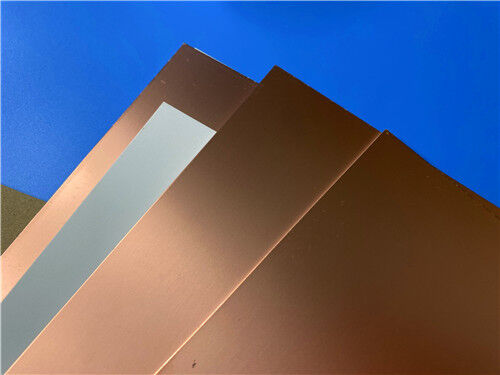

RT / Duroid 5880LZ High Frequency Laminates Copper Clad Sheet For Pcb

MOQ:	1 stks
Prijs:	USD9.99-99.99
Standaardverpakking:	Vacuümzakken+dozen
Leveringstermijn:	8-9 werkdagen
Betalingswijze:	T/T
Toeleveringskapaciteit:	5000 stuks per maand

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

Bicheng

Certificering

UL, ISO9001, IATF16949

Modelnummer

BIC-332.V1.0

Artikelnummer:

Rogers RT/duroid 5880LZ

Dikte van het laminaat:

0,010” (0,252 mm) +/- 0,0007” 0,020” (0,508 mm) +/- 0,0015” 0,050” (1,270 mm) +/- 0,0015”

Laminaat formaat:

12” X 18” (305 mm X 457 mm) 24” X 18” (610 mm X 457 mm)

Kopergewicht:

½ oz (18 mm) HH/HH; 1 oz (35 µm) H1/H1

Markeren:

Duroid 5880LZ High Frequency Laminates

RT High Frequency Laminates

Pcb High Frequency Laminates

Productbeschrijving

RT/duroid® 5880LZ laminates are engineered filled PTFE composites, purpose-built for precision stripline and microstrip circuit applications.

A unique filler system yields a low-density, lightweight material ideal for high-performance designs where weight is a critical factor.

These laminates offer a very low and stable dielectric constant, which is highly uniform across panels and remains consistent over a broad frequency range. Coupled with an exceptionally low dissipation factor, this electrical stability makes RT/duroid 5880LZ suitable for applications extending into Ku-band and beyond.

From a fabrication standpoint, RT/duroid 5880LZ laminates are easily cut, sheared, and machined. They exhibit strong chemical resistance, remaining unaffected by the solvents and reagents commonly used in printed circuit etching, plating, and hole preparation processes.

To ensure optimal performance, please specify the following when ordering:
-Dielectric thickness and tolerance
-Electrodeposited copper foil type
-Copper foil weight

Property	Typical Value	Direction	Units	Condition	Test Method
Dielectric Constant Process	2.00 ± 0.04	Z	-	10 GHz/23°C	IPC-TM-650, [2.5.5.5](2.5.5.5)
Dielectric Constant Design	2.00	Z	-	8 GHz - 40 GHz	Differential Phase Length Method
Dissipation Factor <br>Typ<br>Max	0.0021<br>0.0027	Z	-	10 GHz/23°C	IPC-TM-650, [2.5.5.5](2.5.5.5)
Thermal Coefficient of Dielectric Constant	+20	Z	ppm/°C	-50°C to 150°C, 10 GHz	IPC-TM-650, [2.5.5.5](2.5.5.5)
Volume Resistivity	1.74X10⁷	-	Mohm•cm	C-96/35/90	IPC-TM-650, [2.5.17.1](2.5.17.1)
Surface Resistivity	2.08X10⁶	-	Mohm	C-96/35/90	IPC-TM-650, [2.5.17.1](2.5.17.1)
Electrical Strength	40	-	kV	D48/50	IPC-TM-650, 2.5.6
Dimensional Stability	-0.38	X,Y	%	-	IPC-TM-650, 2.4.39A
Moisture Absorption	0.31	-	%	24 hours/23°C	IPC-TM-650, [2.6.2.1](2.6.2.1)
Thermal Conductivity	0.33	Z	W/m/°K	80°C	ASTM C518
Coefficient of Thermal Expansion	54, 47<br>40	X,Y<br>Z	ppm/°C	0 to 150°C	IPC-TM-650, 2.4.41
Outgassing<br>TML<br>CVCM<br>WVR	0.01<br>0.01<br>0.01	-	%	-	ASTM E-595
Density	1.4	-	gm/cm³	-	ASTM D792
Copper Peel Strength	>4.0	-	pli	-	IPC-TM-650, 2.4.8
Flammability	V-0	-	-	-	UL 94
Lead-Free Process Compatibility	YES	-	-	-	-

RT / Duroid 5880LZ High Frequency Laminates Copper Clad Sheet For Pcb 0

Features:
• Lowest dielectric constant available
• Low Z-axis CTE
• Lightweight / low density
• Uniform electrical properties over a wide frequency range

Some Typical Applications:
• Airborne antenna system
• Lightweight feed networks
• Military radar systems
• Missile guidance systems
• Point-to-point digital radio antennas

Tags:

Duroid 5880LZ High Frequency Laminates,

RT High Frequency Laminates,

Pcb High Frequency Laminates
